Install WideQuick Designer
Installing the program
System requirements
WideQuick® consists of a Designer part, a Runtime part and a Remote part. This chapter focuses on installing only WideQuick Designer. This type of installation is useful when developing an WideQuick application that is not the target system for running the application.
To use WideQuick® Designer, you will need the following or better:
- An x86-64 (Intel 64/AMD64) processor.
- 4 096 MB RAM
- 300 MB available hard drive space
WideQuick® products are supported on the following operating systems:
- Windows 7 embedded (64-bit)
- Windows 10 (64-bit)
- Windows 11 (64-bit)
- Windows Server 2016 or newer (64-bit)
- Debian GNU/Linux 9.0 (64-bit)
Installation procedure
WideQuick® Designer must be installed on your hard drive from the downloaded installation package.
The installation program for WideQuick® is delivered via download. Follow the instructions below to install WideQuick® on your computer.
Run the install file
Run the install file on the computer where you wish to install WideQuick®

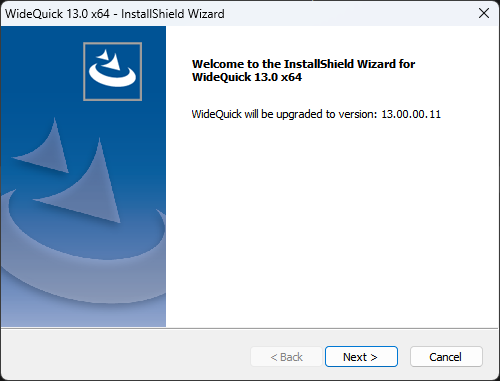

Welcome to the installation program for WideQuick®
The first dialogue welcomes you to the installation program for WideQuick®.
Click Next > to continue the installation.
The license agreement
Read the agreement carefully and click Yes to accept the agreement and continue the installation.

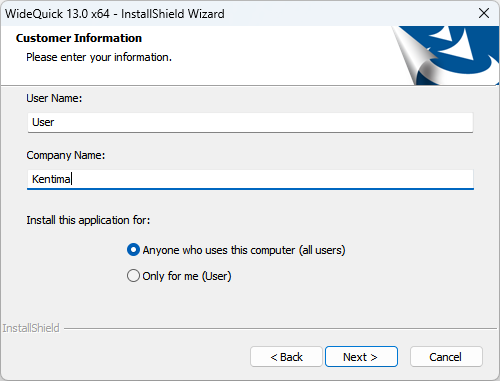

Filling out personal information
The next step in the installation is filling out information about who you are and who will be allowed to run WideQuick® on this computer.
Fill in your name and company, if relevant.
You may also choose between installing WideQuick® for all users, or just for yourself. “All users” means that WideQuick® can be run regardless of who is logged into the computer.
If you select “Only for me”, WideQuick® can only be run when you yourself are logged on.
Make your selection and click Next > to continue.

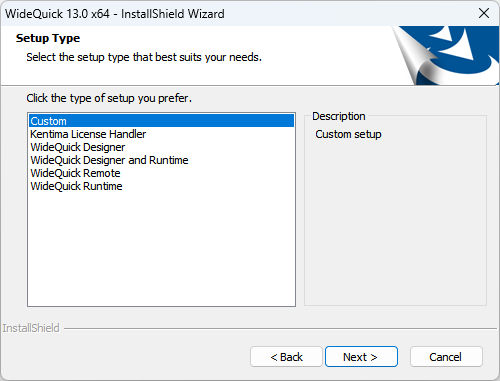

Setup type
The next dialogue allows you to choose setup type. It is here you can select WideQuick Designer, and Designer only. As the Designer does not require a license this is perfect for set ups where you will be developing your project on a machine that is not the intended runtime machine.
If you decide to choose one of the programs, they will be installed in the standard folder, which is normally C:\Program Files\Kentima AB\WideQuick.
WideQuick Designer means that the entire WideQuick® Designer as well as a features demo will be installed.
If you are happy with the standard installation folder, choose WideQuick Designer.

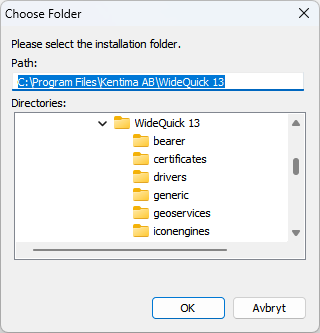

Selecting the installation folder
In the following dialogue you may change the installation folder
You may choose where you would like WideQuick® Designer and/or WideQuick® Runtime to be installed. To change the installation folder, click Browse… and a new dialogue will appear.
Choose your desired installation folder and click OK when you are finished, or Cancel to go back. Finally, click Next > to move on to the next dialogue.
Installation Summary
Before the installation starts copying files, you will see dialogue displaying the choices you have made and the information you have provided.
If you are satisfied with your selection, click Next > to start copying the files.

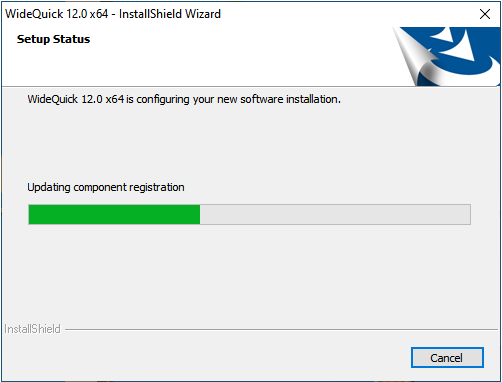

During the installation process you will see a status dialogue.

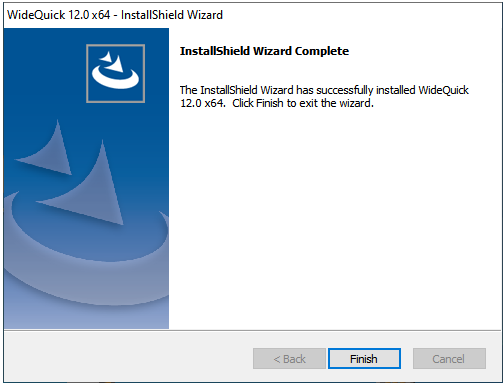

When everything is completed, you will see this dialogue:
Click Finish to finish the installation procedure.
WideQuick is now installed

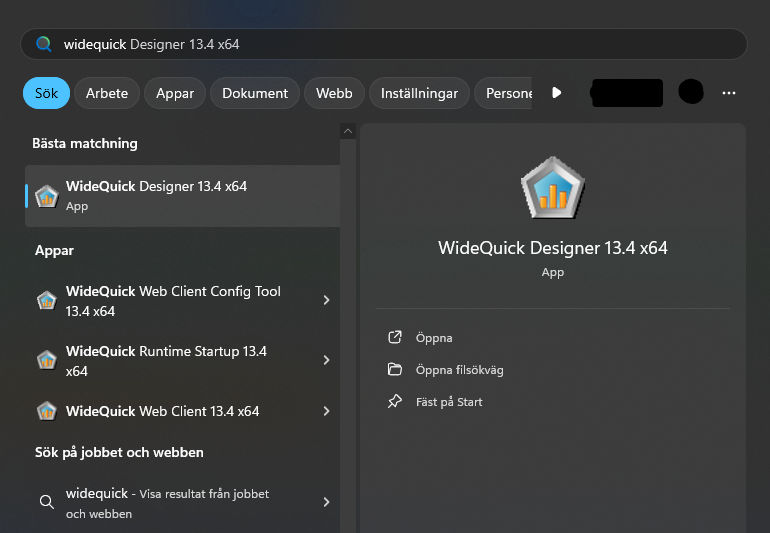

You have now completed the steps to install WideQuick! To launch WideQuick® Designer please access your start menu on your device.
Further help
Want more information regarding your WideQuick Installation?
For more information on how to change the installation, licenses and licensing and more. Please consult the WideQuick Manual accessible from WideQuick Designer by pressing F1 or by menu Help>Getting Started
